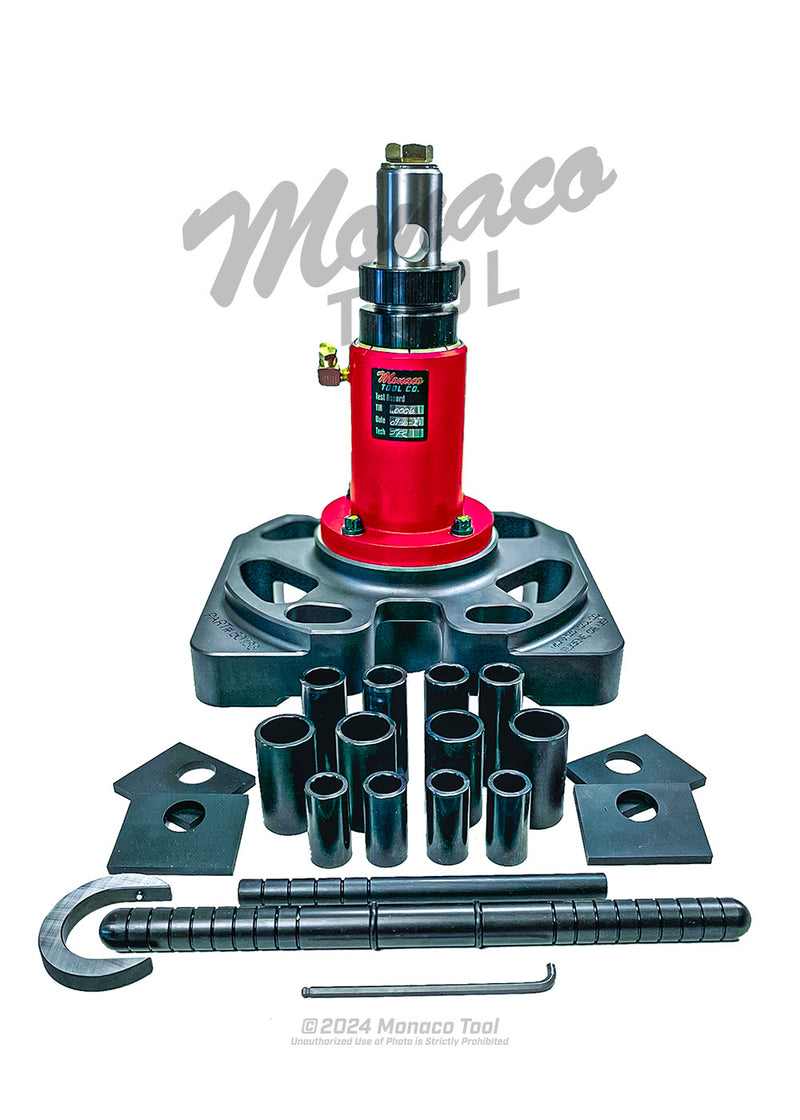

50133 - Upper Deck Counterbore Tool (*PT 2250 B)

YOU WILL NEED TO PURCHASE THE CUTTER PLATE!!  THIS TOOL ALONE, DOES NOT INCLUDE THE PLATE: SEE YOUR OPTIONS BELOW FOR DIFFERENT ENGINES.

Compatible Cutter Plates for Monaco Tool #50133.

• #10225 for CAT 3400/C15/C18 - PT-2400-15A
• Note - Front cover may have to be removed to cut #1 cylinder on C15.  See Tool # 50139
• #10228 for CAT 3306 - PT-2400-13, 5P-1659
• #20154 for Cummins NT, N14 - PT-2200-72, 3823374
• #30144 for DD 60 Series - J-41065
• #30147-035 for DD 60 Series, includes 6 Stainless Steel shims, .035 thick
• #30147-025 for DD 60 Series, includes 6 Stainless Steel shims, .025 thick
• #30147 for DD 60 Series, includes 6 Brass shims, .060 thick
• #50125 for IHC/Navistar New DT 466/530 - PT2200-95, ZTSE-25144-A
• #50140 for IHC/Navistar DT 466 - PT-2200-37, ZTSE-25142
• Note: Front cover may have to be removed to cut #1 cylinder on IHC/Navistar DT466 engines.  You will need ZTSE-25141 to cut #1 cylinder on DT466.
  We do not manufacture the ZTSE-25141.

  ALL CUTTER BITS ARE NON WARRANTY ITEMS

  Be Proud to own American Made Tools.

  Here is a video of the preparation of your block and operation of our Monaco Tool #50139 Counterbore Tool.  This tool cuts a CAT the same way that this tool, the #50133 would cut.  Setup and preparations are the same for each tool. You can see more of the Adept Ape videos here.
